CE MarkedISO 13485
Drip Control
IV Flow Regulator used to accurately control & regulate the flow of IV fluids. Provides reliable accuracy across the adjustable rotor with precise flow rate control from 5 to 250 ml/hr.
Available Variants

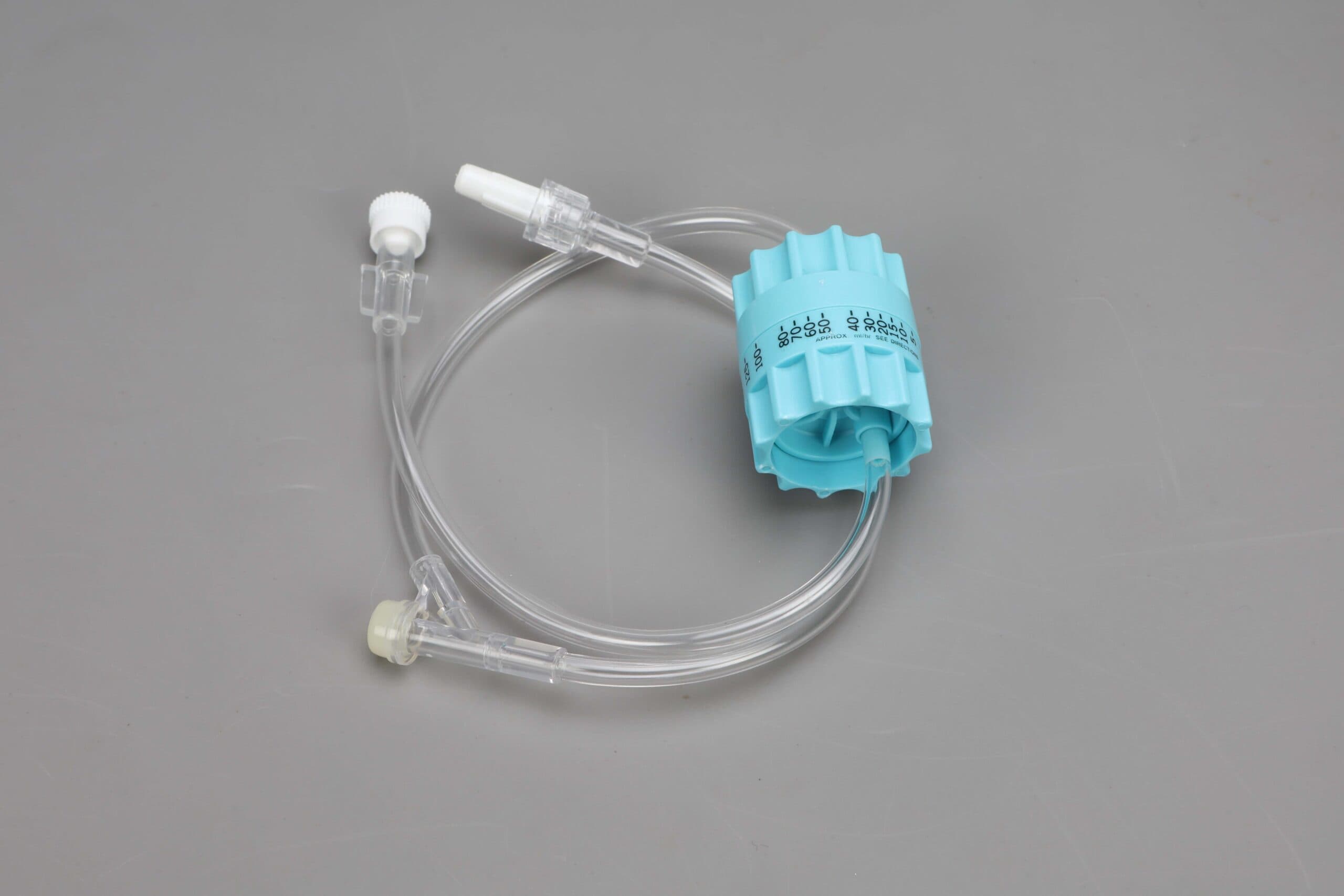

Drip Control — Standard
IV Flow Regulator with Y injection port, tubing length 50 cm.

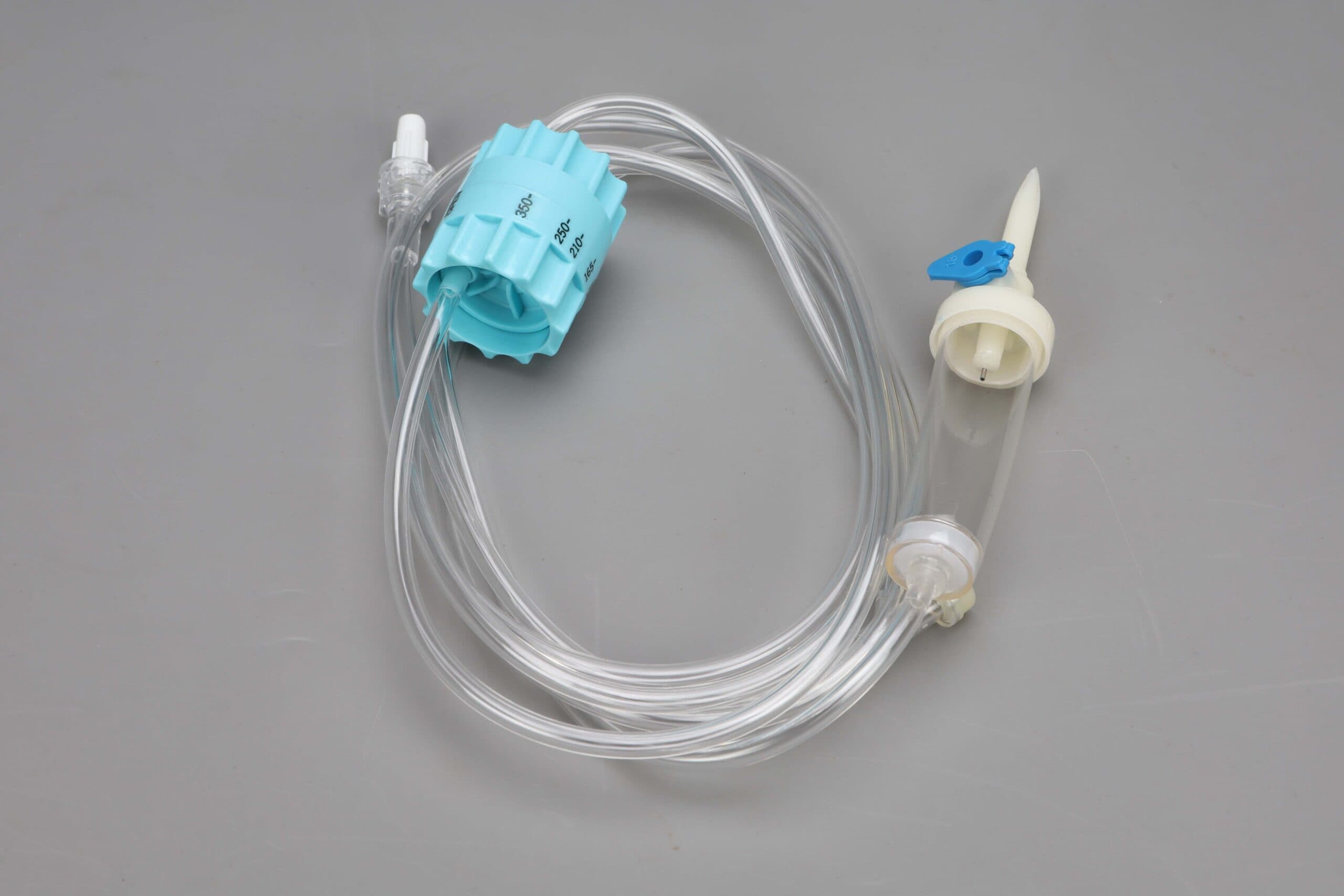

Drip Control — With IV Set
IV Flow Regulator with Y injection port with IV set, tubing length 150 cm.
Indications for Use
- Accurately control & regulate the flow of IV fluids
- Infusion of liquid substances directly into a vein
- Maintain flow stability via adjustable rotor mechanism
- Precise flow rate control of IV fluids with a range of 5 to 250 ml/hr
Key Features & Benefits
✓3-component construction allows flow adjustment via rotation of central calibrating disc
✓Proximal & distal parts remain stationary — prevents twisting & kinking of IV line
✓'Two-handed' operation eliminates accidental tampering
✓Recessed finger grips for firm hold during calibration
✓Injection site made of Polysulfone (Latex Free)
✓Facilitates quick & aseptic drug injection close to the cannulation site
✓Adjustable flow rates from 5 ml to 250 ml/hr
Technical Specifications
| Flow Range | 0 to 250 ml/hr |
| Total Length | 50 cm |
| Pressure Stability | 5 Bar Hydrostatic |
| Tube ID / OD | 2.60 / 4.10 mm |
Material Specifications
| Body / Housing | ABS |
| Seal | NBR |
| Injection Site | Polysulfone |
| Disc | Polycarbonate |
| Tubing | Polyvinylchloride (PVC, Medical Grade, Non-DEHP) |
Packing Details
| Primary Pack | Gas permeable membrane sheet & see-through laminated film pouch |
| Secondary Pack | 20 units per carton |
| Tertiary Pack | 240 units (12 cartons per shipping box) |
Regulatory Status
- ✓CE Marked
- ✓ISO 13485
