CE MarkedISO 13485

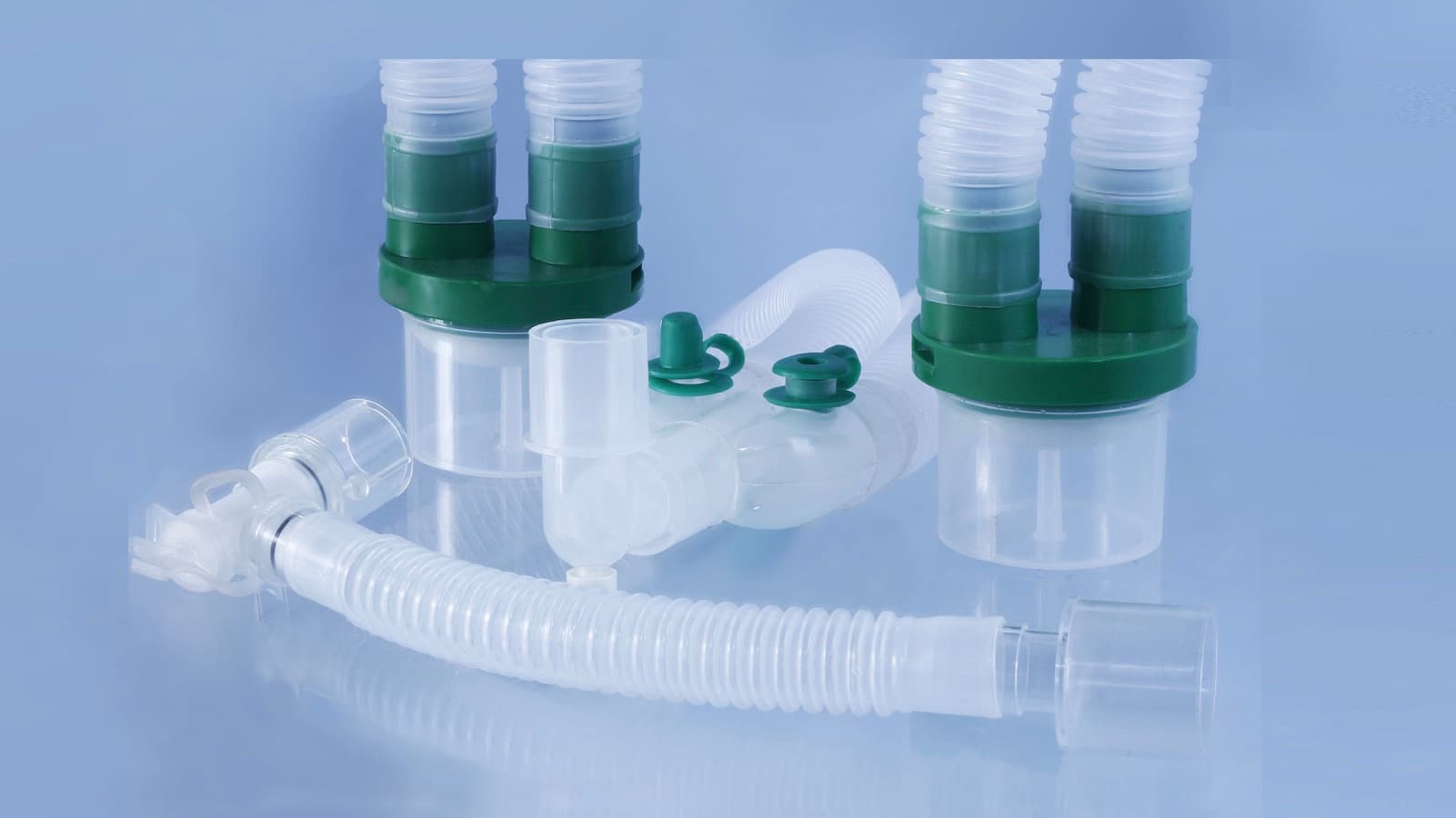

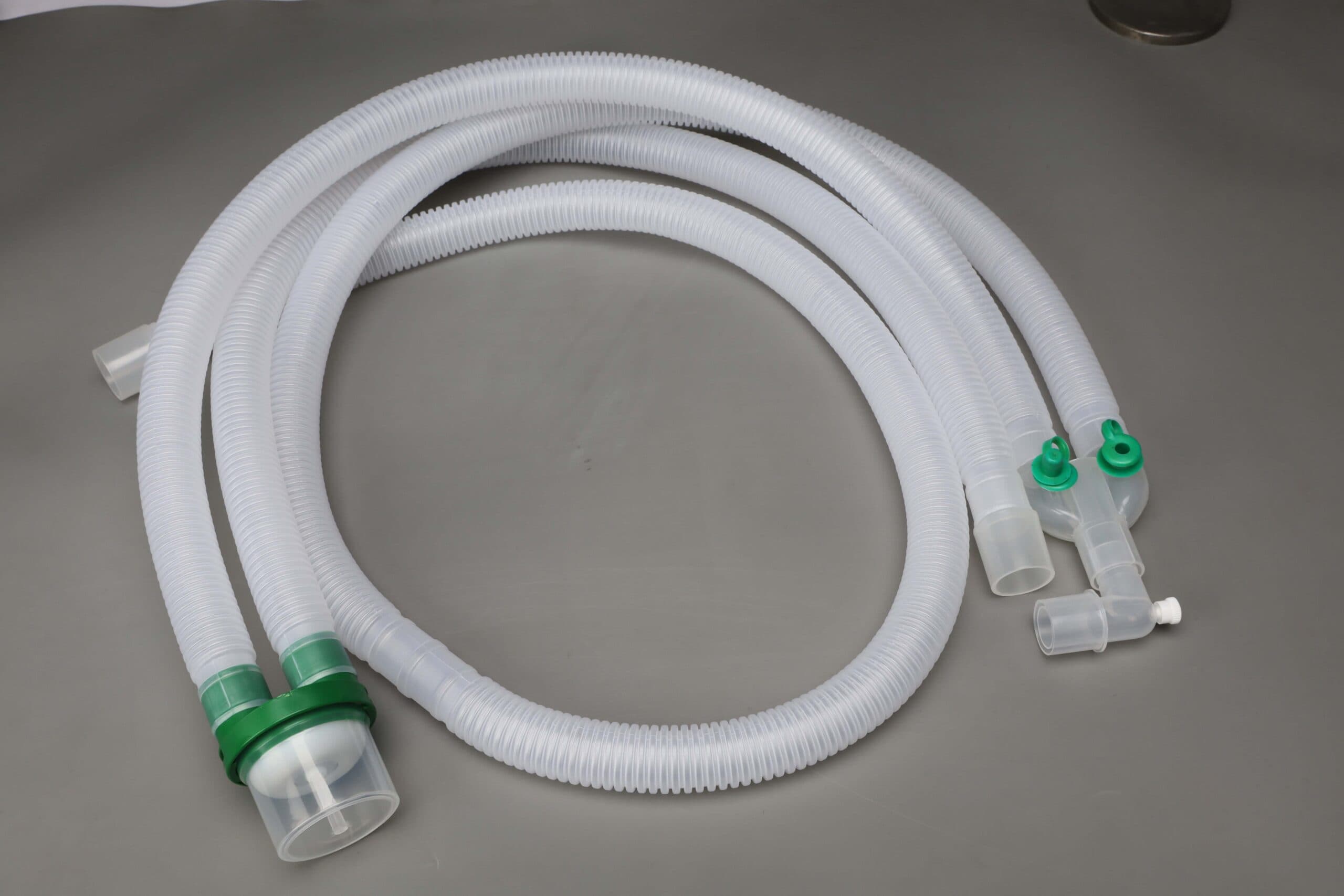

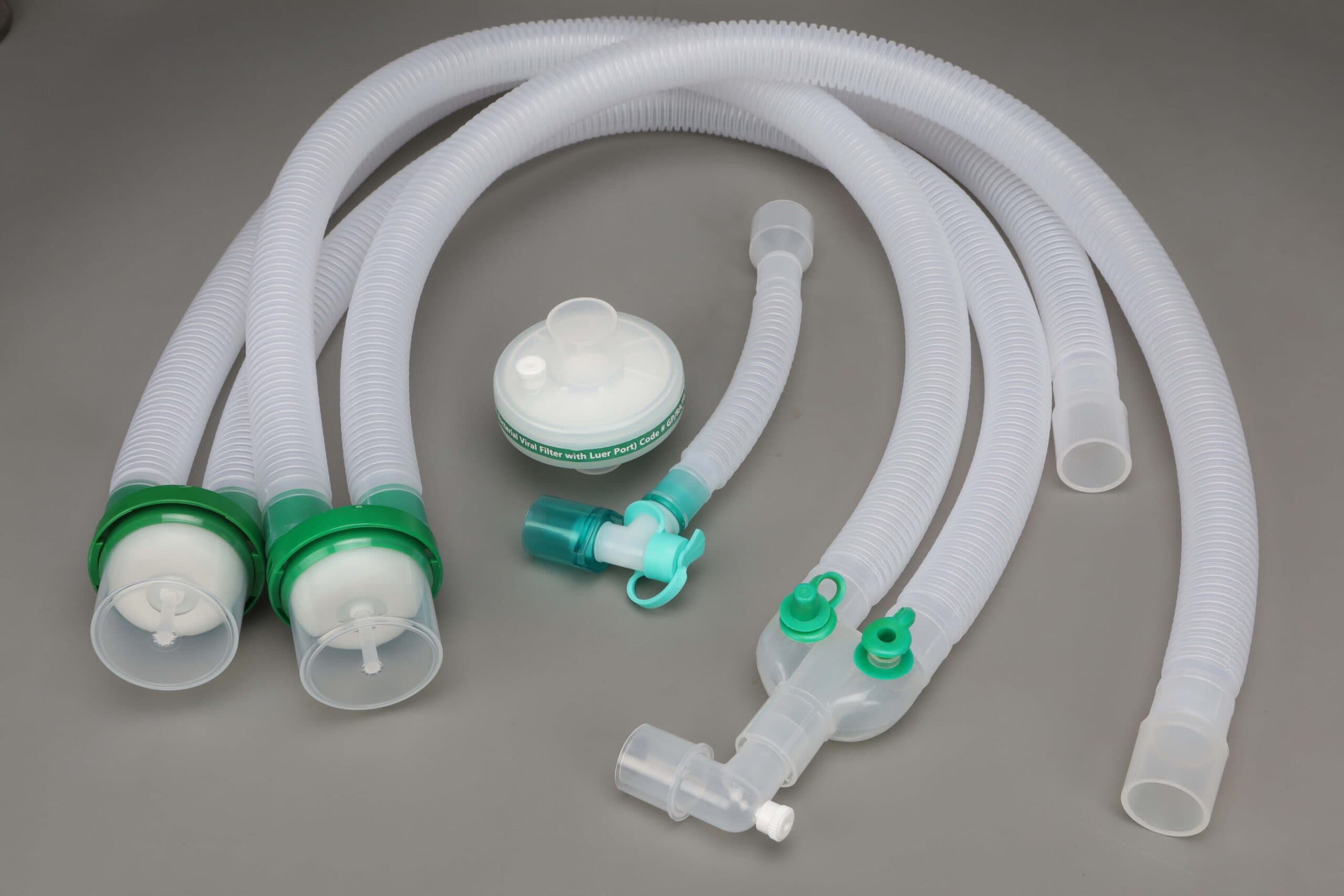

Breathing / Respiratory Circuits

Pre-assembled corrugated / expandable breathing circuits connecting patient airways to ventilators and anaesthesia machines. Available in adult and paediatric sizes with standard and custom circuit configurations for anaesthesia, respiratory and critical care use.

← Back to Category

Indications for Use

Connecting patient airways to ventilator machines during mechanical ventilation
General anaesthesia — breathing circuit for anaesthesia machines
Respiratory and critical care treatment
Paediatric ventilation and anaesthesia
Custom circuit configurations for specific procedural needs

Key Features & Benefits

✓Lightweight systems minimise drag and pressure on the patient

✓Shallow tube design offers low resistance and minimal turbulence

✓Soft, lightweight & flexible connectors ensure a secure seal while allowing ease of connection and disconnection

✓Parallel 'Wye' piece allows greater system control and easy fitting to Catheter Mounts, Endo-tracheal Tubes, Laryngeal Masks, Filters, Face Masks & Elbows

✓Integrated ports for in-line temperature and pressure monitoring

✓Self-sealing 'Water Traps' automatically close when the receiver is removed, maintaining ventilation pressure throughout

✓Available in adult and paediatric sizes with regular or expandable tubing

✓Standard and custom circuit configurations available

✓Disposable single-use design for optimal patient safety

Technical Specifications

Tubing Type	Corrugated / expandable
Limb Diameter	22 mm (adult) / 15 mm (paediatric)
Limb Length	110 cm expandable (adult)
Wye Piece	Parallel 'Y' — compatible with ETT, LMA, catheter mounts, filters & face masks
Monitoring Ports	Temperature and pressure monitoring ports included
Standard Compliance	ISO 5367

Material Specifications

Corrugated Tubing	Medical grade polypropylene / polyethylene — anti-static, kink-resistant
Connectors / Wye Piece	Soft, lightweight, flexible medical grade plastic
Water Trap	Self-sealing mechanism with polycarbonate receiver

Packing Details

Primary Pack	Individual sterile pouch
Secondary Pack	20 units per carton
Tertiary Pack	As per carton configuration

Regulatory Status

✓CE Marked
✓ISO 13485
